Orbital Shaker-Incubator

$1550.00

Description

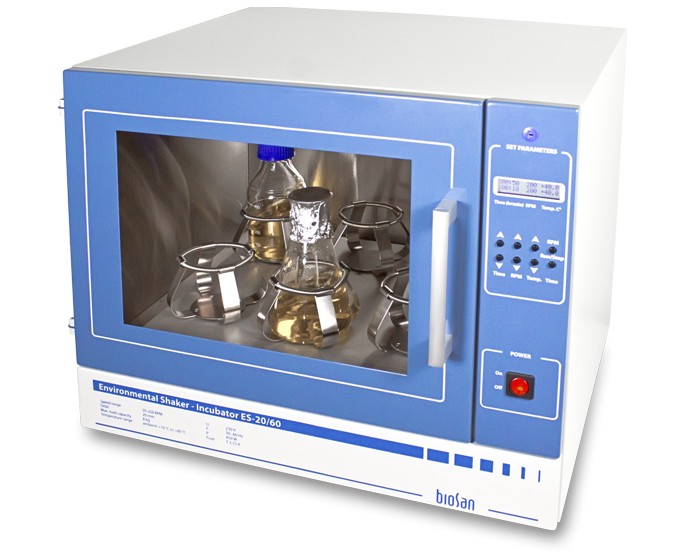

The ES-20 is a compact bench–top Shaker–Incubator used for mixing of biological liquids as well as for incubation and cultivation of biological liquids according to the operator set program

Built–in microprocessor thermocontroller provides constant temperature control in the incubator chamber. Forced heated air circulation inside the transparent plexiglas chamber guarantees even temperature distribution. Dismountable construction makes transportation easy.

Orbital shaking is controlled by the digital tachometer (rpm) and Digital time setting regardless of the temperature. The unit is equipped with the direct–drive system ensuring most reliable stable long–time operation (up to 30 day nights).

The ES-20 is extremely easy to operate, with very straightforward setup of temperature, speed and time, using the two line set–up and status display, which clearly indicates both set and actual values for each of the three parameters.

Five interchangeable platforms allow using the ES-20 for:

Growing cell cultures in flasks and other laboratory glassware;
Extracting tissue samples at physiological temperatures;
Other sample preparation processes.

Specification

Temperature setting range	+25°C ... + 42°C
Temperature control range	5°C above ambient ... + 42°C
Setting resolution	0.1°C / 1 rpm
Temperature stability	±0.5°C
Speed control range	50–250 rpm
Orbit	10 mm
Display	LCD, 2 x 16 signs
Digital time setting	1 min–96 hrs / non-stop
Plexiglas walls thickness	7 mm
Load capacity	2.5 kg
Overall dimensions (W×D×H)	340x340x435 mm
Internal chamber dimensions	305×260×250 mm
Weight	13.2 kg
Nominal operating voltage	230 V, 50/60 Hz or 120 V, 50/60 Hz
Power consumption (230V / 120 V)	160 W (0.7 A) / 170 W (1.6 A)
