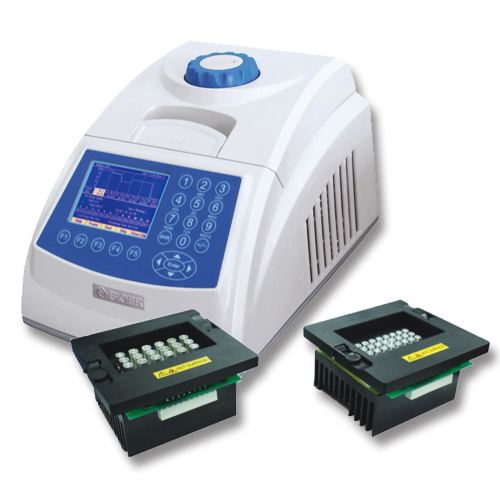

GeneQ

The concept of GeneQ set of superior performance, compact structure, friendly interface, reliable results for all. Especially in the heating speed, temperature control accuracy, uniformity and module, GeneQ shows the excellent performance.Model

	TC-24/H(b)		TC-18/H(b)
Sample capacity	24*0.2ml   8-strip   24-microplate		18*0.5ml
Temp.range	4℃~99.9℃
Heating Rate( Max.)	≥ 5℃/sec		≥ 4℃/sec
Cooling Rate( Max.)	≥ 4℃/sec		≥ 3℃/sec
Block Temp.Uniformity	≤±0.2℃
Block Temp.Accuracy	≤±0.2℃
Temp.of Hot Lid	30 ~ 110℃
Ajustalbility of Hot Lid Press	Yes
Temp.control modes	Block or Tube
Display	320*240 LCD,3.8 inch
Graph Display	Yes
Program Storage	100 files
Max.Segments	5
Max.Program Steps	16
Max.Cycles	99
Power supply	AC220V       50Hz      200VA
Size(mm)	345*250*270( L*W*H )
Net weight	3.2kg
Interfaces	RS232
Certificates	Ferrotec Pelitier / MET / CE / ROHS
