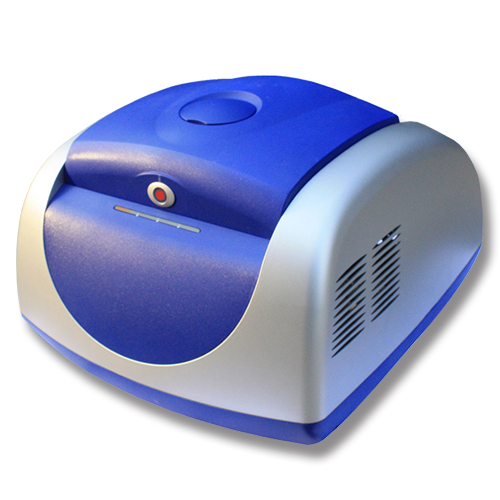

Real Time PCR LineGene K

Line-Gene K fluorescence quantitative PCR detection system is four channel Hangzhou Bioer Technology Co., Ltd. after Line-Gene series products the first home to create new products.

The system receives the technical characteristics of Line-Gene consistently, using advanced thermoelectric semiconductor refrigeration technology and optical fiber technology. Constant current power supply and multi-point temperature control mode unique, so that the heating and the cooling module and fluorescence detection module of the technology is more mature, with quick change, precise temperature control, excellent performance and low power consumption.

The system uses a modular design, with a variety of configuration options, and additional temperature gradient, the sample at 4 ℃, electric heat preservation cover, automatic dehumidifying and other, more stable, more powerful, more humane design. Can adapt to different levels of customer requirements. Fully meet the needs of scientific research and clinical broader demand.Model

	FQD-48A(A4) (A4: means automatic lid and 4 channels)		FQD-48A(M2) (M2: means manual lid and 2 channels )
Sample Capacity	yle="" width="426"> 48*0.2ml		yle="" width="426"> 48*0.2ml
Sample Volume Range	yle=""> 10~100μL		yle=""> 10~100μL
Dynamics Range	yle=""> 1~1010Copies		yle=""> 1~1010Copies
Max.Channel Number of Fluorescence Detection	yle=""> 4 Channels		yle=""> 2 Channels
Excitation Wavelength ( 450-590mm)	yle=""> Standard channels:    F1:470nm F2:523nm   F3:543nm   F4:571nm		yle=""> F1:470nm   F2:523nm
Emission Wavelength	yle=""> Standard channels:    F1:525nm F2:564nm   F3:584nm   F4:612nm		yle=""> F1:525nm   F2:564nm
Detected Fluorescence	yle=""> F1：FAMSYBR Green I; F2： HEXVIC                    F3：TAMRAJOECy3       F4：TEX REDROX		yle=""> F1：FAMSYBR Green I; yle=""> F2： HEX VIC
Temp.Range	yle=""> 4℃ ~99.9℃		yle=""> 4℃ ~99.9℃
Heating Rate ( Max)	yle=""> ≥4.0℃/sec		yle=""> ≥4.0℃/sec
Cooling Rate ( Max)	yle=""> ≥4.0℃/sec		yle=""> ≥4.0℃/sec
Temp.Uniformity of Block	yle=""> ≤±0.3℃		yle=""> ≤±0.3℃
Temp.Control Accuracy	yle=""> ≤±0.1℃		yle=""> ≤±0.1℃
Gradient Temp.Range	yle=""> 1℃~24℃		yle=""> 1℃~24℃
Hot-lid Temp.Range	yle=""> 80℃~110℃		yle=""> 80℃~110℃
Operation System	yle=""> Windows 2000/XP		yle=""> Windows 2000/XP
Power Supply	yle=""> AC110~220V    50Hz/60Hz    650W		yle=""> AC110~220V    50Hz/60Hz    650W
Dimension( mm )	yle=""> 520*450*320( L*W*H )		yle=""> 520*450*320( L*W*H )
Net Weight	yle=""> 25kg( Without Computer )		yle=""> 25kg( Without Computer )
Certificater	Ferrotec Pelitier / MET CE / RoHS / CE-IVD
