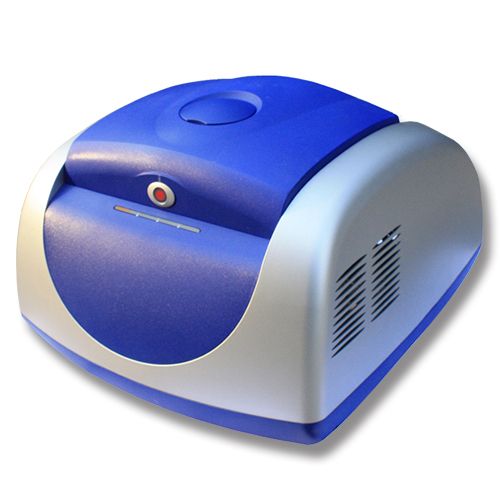

Real Time PCR LineGeneK Plus

LineGene K Plus is Bioer latest realtime PCR detection system. LineGene K plus has a faster heating and cooling rate, better temperature control accuracy, temperature uniformity and the machine stability with the specially-made Peltier by Ferrotec, advanced optical fiber technology and the bottom detection patent mode. It can be used with Windows Tablet PC.  This new touch screen operation will bring you the ultimate experience of human-computer interaction.
           The new and innovative LineGene K Plus Real-time PCR detection system can adapt to different levels of customer requirements, which can fully meets various requirements of scientific research and clinical applications.
           By adopting unique side double Ferrotec heating method, add heat transmission area, speed up heat transmission, improve the rate of temperature increase.  Meanwhile,novel three-block design ensures temperature uniformity of each block controlled independently without interruption. uct name

	LineGene K Plus Real-Time PCR Detection System
Model	FQD-48A
Certificate	Ferrotec Peltier/CE/MET/RoCH2/PICC product
Sample Capacity	48×0.2ml(Single tube or Strips 8 PCR tubes)
Detected Fluorescence	F1	F2	F3	F4
Dye	FAM，SYBR Green I	VIC，HEX，JOE，Cy3TAMRA	ROX，TEXAS-RED	Cy5 Quasar 670
Block Temp.Range	4~105℃（Min setting scale is 0.1℃）
Heating/Cooling Rate	4℃/s（max)
Temp. Control Accuracy	≤±0.1℃（55℃ typical value)
Temp.Fluctuation	≤±0.1℃
Temp.Uniformity	≤±0.3℃
Hot-lid Temp. Range	70~110℃（Adjustable，Default 105℃，Automatic Hot-lid)
Operation Mode	Three independent temperature control blocks，0.1~6℃ Temperature difference between blocks.
Temp.Control  Mode	Continuous
Feature Function	Absolute Quantification，Relative Quantification，SNP Analysis，Melting Curve Genotyping，Gradient，HRM，Multi-channel Crosstalk Correction，Background Correction，Automatic Gain，Customized Parameters.
Operation System	Microsoft：Windows XP/windows vista/windows 7/windows 8
PC Configuration	Surface Pro series， PC/Laptop
Socket	RS232 adapter，USB adapter，Bluetooth adapter
Power Supply	100-240V~50/60Hz 600W
Dimension	384mm×353mm×348mm
Weight	13kg
